Description
12″ Shallow Mount Car Subwoofer
250W RMS Power Handling
1000W Peak Power
SSI™ Selectable Smart Impedance (2 or 4 Ohm)
Ultra-Slim Mounting Depth – 83mm
Deep Bass Response Down to 27Hz
Polypropylene Woofer Cone
High Sensitivity – 92 dB
Ideal for Compact Cars & Tight Installations
Works in Sealed Enclosures
📦 What’s in the Box
1 x 12″ Subwoofer (250W RMS)
Owner’s Manual
📝 Product Description

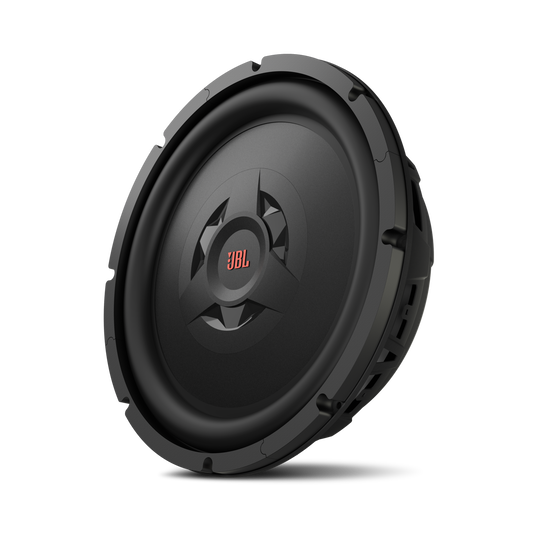

Upgrade your car’s bass performance with the powerful JBL Club WS1200, designed for vehicles where space is limited but deep bass is still a priority.
This 12″ shallow mount subwoofer handles 250W RMS and 1000W peak power, delivering clean, tight, and impactful low frequencies.

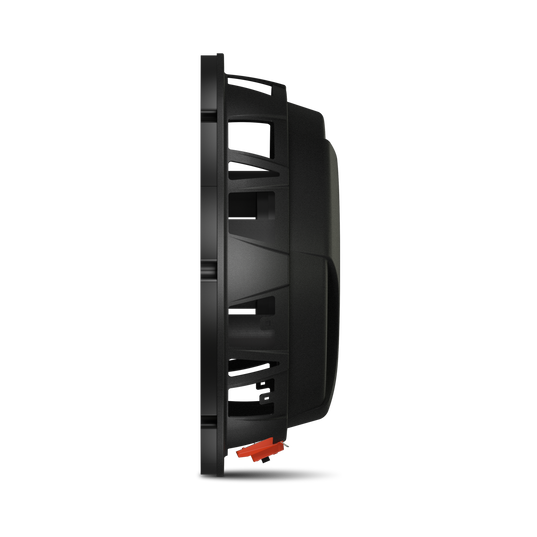

Its low-profile 83mm mounting depth makes it perfect for compact cars and slim enclosures where traditional subwoofers won’t fit.
The standout feature is Harman’s SSI™ (Selectable Smart Impedance) technology, allowing you to switch between 2 ohms and 4 ohms depending on your amplifier setup — giving installers greater wiring flexibility.
With bass response extending down to 27Hz, the WS1200 delivers deep, powerful JBL signature sound even in smaller enclosures.
Perfect for customers who want strong bass without sacrificing trunk space.
📊 Technical Specifications
Size: 12″
Type: Shallow Mount Passive Subwoofer
RMS Power: 250W
Peak Power: 1000W
Impedance: 2 or 4 Ohms (Selectable)
Frequency Response: 27Hz – 175Hz
Sensitivity: 92 dB
Mounting Depth: 83mm
